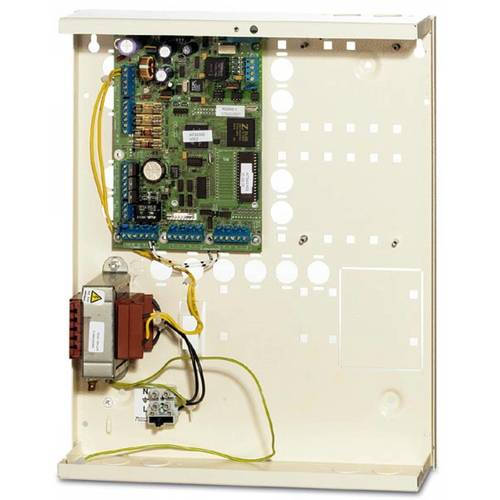

ATS2021 - 8 - 64 zone integrated security panel

The ATS2021 is an integrated alarm & access control panel and features 8 programmable zones and is expandable up to a maximum of 32 zones on board by ATS1202 input expanders or external by Data Gathering Panels like ATS1210.
It can be programmed to operate as 4 independent alarm systems (areas). Each area may have its separate RAS. An optional plug-in ISDN interface ATS7100 provides a secure Euro ISDN connection. All reporting formats are available i.e.: SIA, X-SIA, Contact ID, etc.

Specifications
- System split (areas): 4
- Inputs on board: 8
- Max. inputs in database: 64
- ATS1202 at panel end / Number: Yes / 3
- Outputs on board: Int. & ext. siren strobe + prog. Relay
- Max. number of OC outputs (on unit): 255
- Remote Arming Stations: 16
- Data gathering panels: 15
- Alarm groups: 74-138*
- Standard doors on control panel: 16
- Intelligent doors on 4-Door DGP's: 48
- Door groups: 10-128*
- Floor groups: 10-64*
- Users (cardholders): 50-11466*
- Users with name: 50-200*
- 4 to 10 digit pin codes: 50-1000*
- Alarm events in the log: 250-1000*
- Access events in the log: 10-1000*
- Specified cable: WCAT 52/54 or equivalent
- Power supply: 13.8 VDC / 2 A
- Operating temperature: 0 to +50ºC
- Mains transformer: 230 V 50 Hz/23 VAC 56 VA
- Housing dimensions (W x H x D): 315 x 388 x 85 mm
- PCB dimensions (W x H): 130 x 200 mm
(*) with ATS 1830 RAM memory expansion
