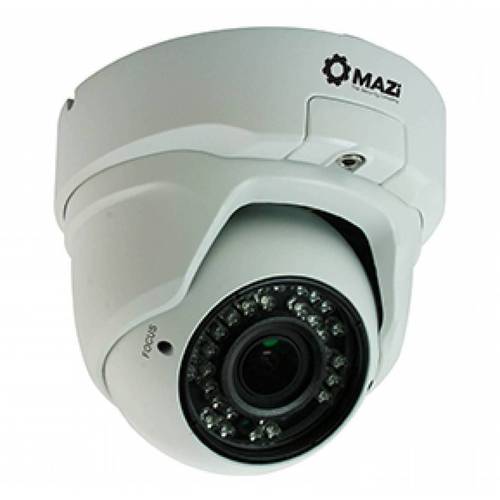

1/3" 700TVL,0.1L,f2.8~12mm, IR40 m, true N&D outdoor

KEY FEATURES
- 1/3" CMOS
- Low illumination
- High resolution: 800TVL
- ICR, 2D-DNR, AGC, AWB
- 36pcs IR LED, 30 meter
- 2.8-12mm lens
- IP66
- Deep base for hiding cables

SPECIFICATION
- Pick Up Element: 1/3" CMOS
- Horizontal Resolution: 800TVL
- IR Function Yes: (Built-in IR CUT filter)
- Video Output: 1.0Vp-p Composite Signal (75ohm)
- Minimum Illumination: 0.01Lux (0 Lux with IR)
- Electronic Shutter: 1/50-100,000Sec
- Gamma Characteristic: 0.45
- IR LED: 36 pcs IR LED
- Scanning System: 2:1 interlace
- Sync System: Internal Synchronization
- Auto Gain Control: Auto
- Auto White Balance: Auto
- Digital Noise Reduction : 2D-DNR
- Lens : 2.8-12 mm
- Power/Current: 12VDC(±10%)/ 400mA
- S/N Ratio: =48dB (AGC off)
- Water Resistance: IP66
- Dimension (mm): 146.30(D)x 121.5 (H)
- Storage Temperature: -30 ~ +60ºC RH95% Max
- Operating Temperature: -20 ~ +50ºC RH95% Max
