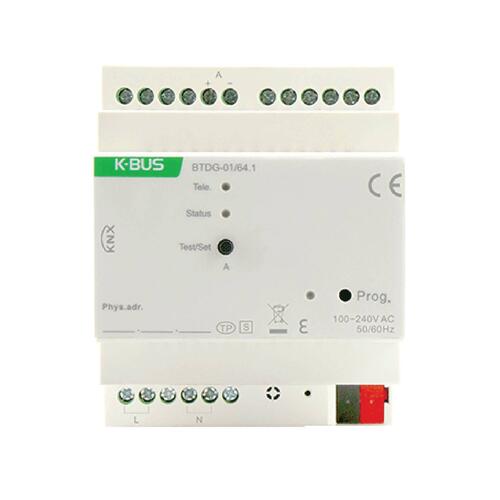

KNX/DALI Gateway 1-Fold
Dali telegram broadcast function, fault detection of lamps and ballasts of DALI devices. Max.64 DALI devices can be controlled (switch, dimming, brightness) each fold, 16 group control, 16 scene control. Support DCA APP in ETS or PC software configuration.
Installation: DIN-rail Mounted.
Functions:
- One/Two output channels, 64 DALI devices per channel
- Switching, dimming and set brightness value for each DALI device
- Scene control: up to 16 different scenes for each channel. And the brightness value of scenes are configured by the Configuration Tool (DCA or PC software)
- Group control: up to 16 different groups for each channel. Assign DALI devices to groups via ETS or the Configuration Tool. And switching, dimming and set brightness value for each group
- 8 behaviour templates for group and ECG action setting and a ECG configuration which can be modified by the Configuration Tool
- Send or response various status, e.g. switch, brightness, operation hours etc.
- Fault detection of lamps and ballasts for DALI devices
- Monitoring DALI bus voltage, DALI bus current and DALI bus short circuit status
- Broadcast control: switching, dimming and set brightness value for all DALI devices of a channel
Parameters:
Power Supply: Bus voltage 21~30V DC , via the KNX bus; Bus current 10.1mA/30V DC , 12.3mA/24V DC; Bus consumption <360mW
Auxiliary Supply: Voltage 100~240V AC, 50/60Hz ; Current <55mA, at 220 V AC; Consumption <12W, at 220 V AC
DALI Output: 1/2 Channel Max.64 DALI devices per channel; Current <=250mA per channel, Load voltage 16~18V DC
Connections: KNX Bus connection terminal (Red/Black); Inputs and output Using screw terminals
Temperature Operation: -5°C ... + 45 °C
Storage: -25 °C ... + 55 °C
Transport: - 25 °C ... + 70 °C
Ambient Humidity: <93%, except dewing
Dali telegram broadcast function, fault detection of lamps and ballasts of DALI devices. Max.64 DALI devices can be controlled (switch, dimming, brightness) each fold, 16 group control, 16 scene control. Support DCA APP in ETS or PC software configuration.
Installation: DIN-rail Mounted.
Functions:
- One/Two output channels, 64 DALI devices per channel
- Switching, dimming and set brightness value for each DALI device
- Scene control: up to 16 different scenes for each channel. And the brightness value of scenes are configured by the Configuration Tool (DCA or PC software)
- Group control: up to 16 different groups for each channel. Assign DALI devices to groups via ETS or the Configuration Tool. And switching, dimming and set brightness value for each group
- 8 behaviour templates for group and ECG action setting and a ECG configuration which can be modified by the Configuration Tool
- Send or response various status, e.g. switch, brightness, operation hours etc.
- Fault detection of lamps and ballasts for DALI devices
- Monitoring DALI bus voltage, DALI bus current and DALI bus short circuit status
- Broadcast control: switching, dimming and set brightness value for all DALI devices of a channel
Parameters:
Power Supply: Bus voltage 21~30V DC , via the KNX bus; Bus current 10.1mA/30V DC , 12.3mA/24V DC; Bus consumption <360mW
Auxiliary Supply: Voltage 100~240V AC, 50/60Hz ; Current <55mA, at 220 V AC; Consumption <12W, at 220 V AC
DALI Output: 1/2 Channel Max.64 DALI devices per channel; Current <=250mA per channel, Load voltage 16~18V DC
Connections: KNX Bus connection terminal (Red/Black); Inputs and output Using screw terminals
Temperature Operation: -5°C ... + 45 °C
Storage: -25 °C ... + 55 °C
Transport: - 25 °C ... + 70 °C
Ambient Humidity: <93%, except dewing
