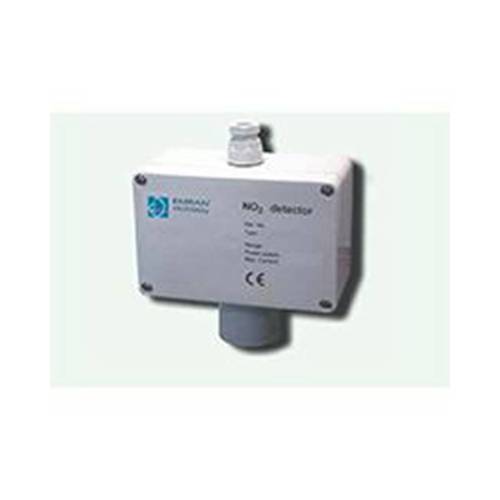

Nitrogen Dioxide Gas Detector

Nitrogen Dioxide (NO2) is a toxic, corrosive, strong oxidising and non inflammable gas, very dangerous, that in concentrations higher than 4 ppm causes intoxication symptoms: eye, nose and bronchial tubes irritation and even death. The major sources of NO2 are diesel motor vehicles and combustion associated processes in petrochemical industries and power plants, as well as any high temperature combustion process used in industrial work.

CHARACTERISTICS
- Technology: Microprocessor and electrochemical sensor.
- Power supply: From 9V to 15V DC.
- Consumption: 8mA.
- Measurement range: From 0 to 20 ppm.
- Resolution: ±0.1 ppm.
- Repeatability: 0,5% Bottom of Scale.
- Linearity: All the scale.
- Calibration Gas: Precise mixture 10 ppm NO2 + N2 1000 ml / min.
- Operational life 2: years in normal working conditions.
- Humidity range: 15% to 90% (continuous) 0% to 99% (blinking).
- Atmospheric pressure: ±10 %.
- Temperature Range: From –15ºC to +50ºC.
- Response time: T90 < 40 s.
- Cable entry: PG9 syntec cable gland IP67 self-blocking.
- Communication: Addressable RS 485 (from 1 to 16).
- Protection grade: IP65.
- Housing material: Makrolon & ABS.
- Weight (gr) and Dimensions (mm): 270 / 120 x 80 x 55.
- Installation height: 1 m from the floor.
- Coverage: 200 m2.
