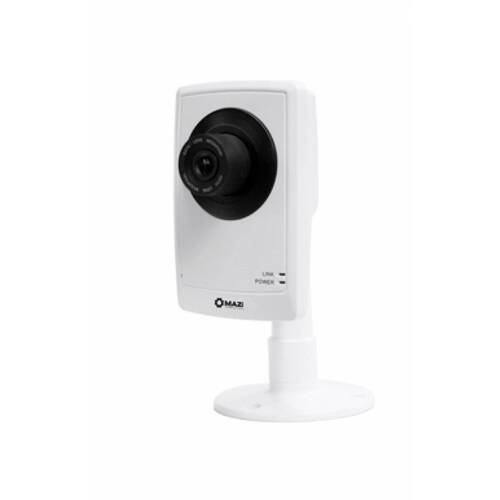

Cube camera, 1/3" progressive scan CMOS, f2.8mm, H.264 / MPEG4 / MJPEG video compression, Up to 2 megapixel resolution, Day / night auto switch, Wi-Fi, POe, bracket included.

Specifications:
- Image sensor: 1/3" progressive scan CMOS
- Min. illumination: 0.5 lux@F1.2, AGC on | 0.1 lux@F1.2, AGC on, sens-up × 5 | 1.1 lux@F1.8, AGC on | 0.2 lux@F1.8, AGC on, sens-up × 5
- Shutter time: 1/25s ~ 1/100,000s
- Lens: 2.8mm
- Day & night: Electronic
- Video compression: H.264 / MPEG4 / MJPEG
- Bit rate: 32 Kbps ~ 16 Mbps
- Audio compression: G.711 / G.726
- Dual stream: Yes
- Max. image resolution: 1600 x 1200
- Frame rate: 50 Hz - 12.5 fps (1600 × 1200), 12.5 fps (1600 × 912),
25 fps (1280 × 960), 25 fps (1280 × 720)
60 Hz - 15 fps (1600 × 1200), 15 fps (1600 × 912),
30 fps (1280 × 960), 30 fps (1280 × 720)
- Image settings: Saturation, brightness, contrast adjustable through client software or web browser
- Network storage: NAS (iSCSI optional)
- Alarm trigger: Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
- Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
- Security User authentication: watermark
- System compatibility: ONVIF, PSIA, CGI
- Audio: Internal microphone and speaker
- Communication interface: 1 RJ45 10M / 100M ethernet port
- On-board storage: Built-in Micro SD card slot, up to 32 GB
- Reset button: Yes
- Operating conditions -10°C ~ 60°C (14°F ~ 140°F) humidity 90% or less (non-condensing)
- Power supply: 5 VDC ± 10%, PoE (802.3af)
- Power consumption: max. 5.5W
- Dimensions: 110 × 70.4 × 47.6 mm (4.33" × 2.77" × 1.87")
- Weight: 250g (0.55 lbs)
