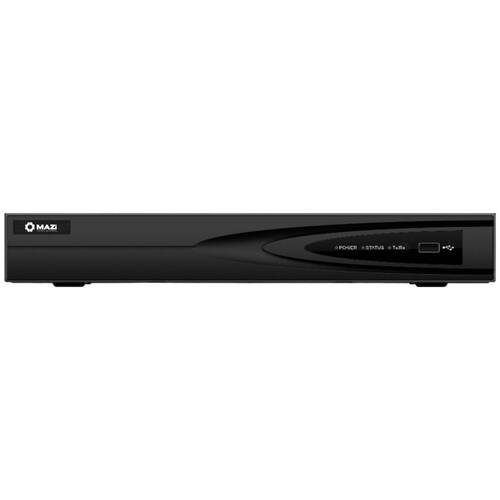

8 channels NVR, up to 8MP recording, H.265+, HDD up to 6TB, 8x PoE interfaces (80W), Bandwith 80/80Mbps (I/O), HDMI and VGA outputs

Specifications:
- Video compression: H.265+, H.265, H.264+, H.264, MPEG4
- IP video input: 8-ch, up to 8MP resolution
- Recording resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
- Video Output:
- VGA: 1-ch; 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 × 768/60Hz
- Synchronous Playback: 8-ch (1-ch@8MP, 4-ch@1080p)
- Audio
- Output: 1-ch, RCA (Linear, 1KOhm)
- Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KOhm)
- Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Bandwidth
- Incoming: 80Mbps
- Outgoing: 80Mbps
- Interface:
- SATA: 1x SATA, up to 6TB
- Network: 1x RJ-45 10M/100M/1000M self-adaptive Ethernet interface
- USB: 1x USB 2.0 (front panel); 1x USB 2.0 (rear panel)
- PoE:
- Interfaces: 8x RJ-45 10M/100M self-adaptive Ethernet
- Power: max. 75W
- Standard: IEEE 802.3 af/at
- Power supply: 48VDC
- Power: max. 90W
- Consumption (without HDD): máx. 10W (without enabling PoE)
- Working temperature: -10ºC to 55ºC
- Working humidity: 10% to 90%
- Dimensions: 315 × 240 × 48 mm (12.4 × 9.4 × 1.9)
- Weight (without HDD): approx. 1.0Kg (2.2 lb)
