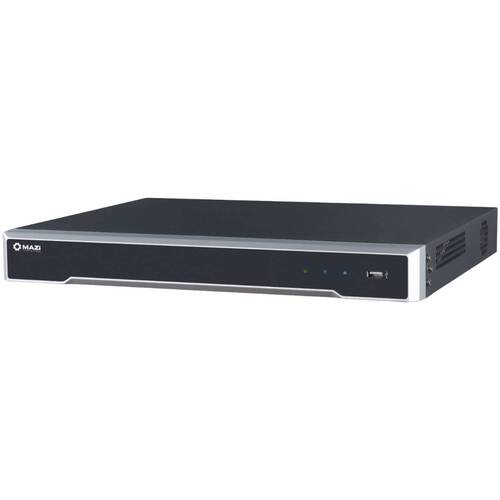

32 channels NVR, up to 12MP recording, H.265+, 2x HDD's up to 8TB, Bandwith 256/256Mbps (I/O), HDMI and VGA outputs, 4In/1Out

Specifications:
- Video compression: H.265+, H.265, H.264+, H.264, MPEG4
- IP video input: 32-ch, up to 12MP resolution
- Recording resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
- Video Output:
- VGA: 1-ch; 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI: 1-ch, 4K (4096 x 2160)/30Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
- CVBS (optional): 1-ch, BNC (1.0 Vp-p, 75Ohm), resolution PAL: 704 × 576; NTSC: 704 × 480
- Synchronous Playback: 16-ch (2-ch @12MP/20fps, 4-ch @8MP/25fps, 8-ch @4MP/30fps, 16-ch @1080p/30fps
- Audio
- Output: 1-ch, RCA (Linear, 1Kohm)
- Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KOhm)
- Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Bandwidth
- Incoming: 256Mbps
- Outgoing: 256Mbps
- Remote connections: 128
- Interface:
- SATA: 2x SATA, up to 8TB
- Network: 1x RJ-45 10M/100M/1000M self-adaptive Ethernet interface
- USB: 1x USB 2.0 (front panel); 1x USB 3.0 (rear panel)
- I/O Alarms: 4/1
- Power supply: 12VDC
- Power: max. 40W
- Consumption (without HDD): max. 15W
- Working temperature: -10ºC to 55ºC (14°F to 131°F)
- Working humidity: 10% to 90%
- Dimensions: 385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch)
- Weight (without HDD): approx. 1kg (2.2 lb)
