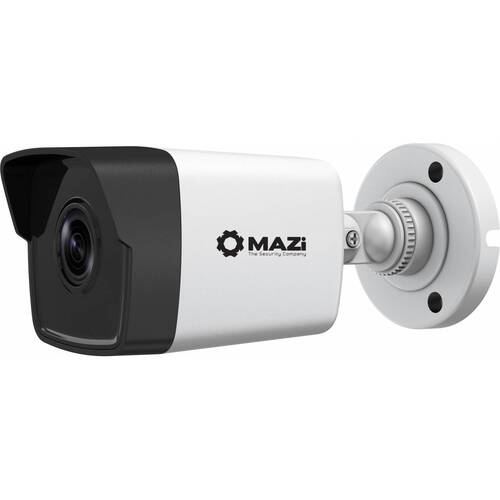

1/3" Progressive CMOS, ICR, 2688x1520:20fps, 2.8mm/F2.0 lens, H.264+&H.264, IP67,IK10, DWDR, 3D DNR, BLC, IR range: up to 30m, DC12V & PoE, power supply no included, Metal front cover(black part) + Plastic body & Bracket(white part)

KEY FEATURES
- 1/3" progressive scan CMOS
- Up to 4.0 megapixel
- 2.8 mm fixed lens
- Up to 30 m IR range
- Dual stream
- Digital WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- PoE (Power over Ethernet)
- IP67
- Mobile monitoring

SPECIFICATION
- Image Sensor: 1/3" progressive scan CMOS
- Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100, 000 s, support slow shutter
- Lens: 2.8 mm @F2.0, horizontal field of view 105°
- Lens Mount: M12
- Day &Night: IR cut filter with auto switch
- 3-Axis Adjustment (Bracket): Pan: 0° to 360°, tilt: -90° to 90°, rotation: 0° to 360°
- DNR(Digital Noise Reduction): 3D DNR
- WDR (Wide Dynamic Range): Digital WDR
- Video Compression: Main stream: H.264+/H.264 Sub stream: H.264/MJPEG
- H.264 Type: Main profile/High profile
- Video Bit Rate: 32 Kbps to 16 Mbps
- Max. Resolution: 2688 x 1520
- Main Stream Max. Frame Rate: 50Hz: 20 fps @(2688 x 1520), 20fps @(2304 x 1296), 25fps @(1920 x 1080, 1280 x 720)
- Sub-stream Max. Frame Rate: 50Hz: 25fps @(640 x 360, 352 x 288)
- Image Settings: Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
- Day/Night Switch: Support auto, scheduled
- Others: Mirror, BLC (area configurable), region of interest (support 1 fixed region)
- Network Storage: NAS (NFS, SMB/CIFS)
- Detections: Motion detection
- Alarms: Video tampering, network disconnected, IP address conflicted
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
- General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- Operating Conditions: -30 °C to 60 °C, humidity: 95% or less (non-condensing)
- Power Supply: 12 V DC ± 25%, PoE (802.3af)
- Power Consumption: Max. 5 W/6.5 W (PoE)
- Protection Level: IP67
- IR Range: Up to 30 m
- Dimensions: 69.1 mm x 66 mm x 172.7 mm
- Weight: 500 g
