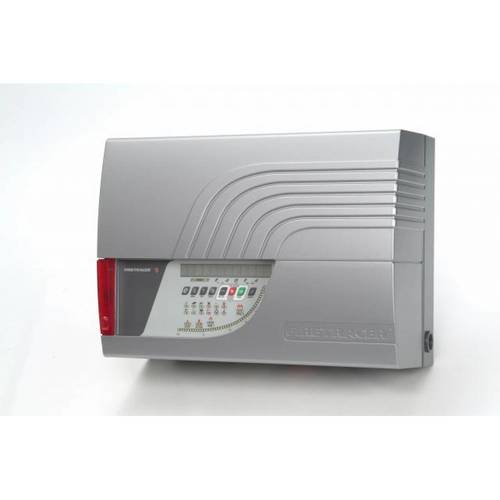

The Zeta LAZ-R range of detectors provide the earliest possible warning to any potential fire threat. They can detect smoke down to levels of 0.001%
They are ideal for many applications, including power stations, telecom centres, IT facilities, LCD fab`s, semiconductor clean rooms, logistic centres, cold storage, prisons, historic buildings, museums, mines and other harsh and hazardous areas.

Specifications
- SUPPLY VOLTAGE: NOMINAL 24V DC (18 TO 30V DC)
- QUIESCENT CURRENT: 600mA
- MAX CURRENT: 1.5A
- NUMBER OF INLET PIPES: 15
- ALARM INDICATIONS: 15
- PIPE DIAMETER: 6mm
- PIPE LENGTH: 50m
- ASPIRATOR TYPE: 0.8 BAR ROTARY VANE VACUUM PUMP
- SENSITIVITY: 0.001 to 20% obscuration / metre
- ALARM LEVELS: ALERT , ACTION , FIRE 1 , FIRE 2
- OTHER CONNECTIONS:
4 X ALARM RELAYS (PROGRAMMABLE)
1 X FAULT RELAY
RS232
RS485
TCP/IP (OPTION)
- IP RATING: IP30
- OPERATING TEMPERATURE: -10°C to 60°C
- ENCLOSURE SIZE: 490 X 355 X 204 mm
