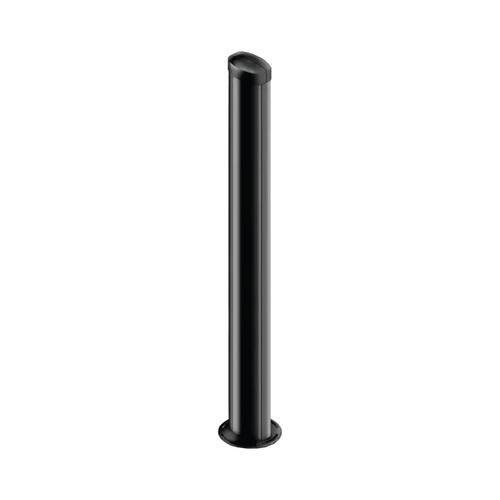

MANA MW 20250
 Click to Zoom
Digital microwave barrier 250m range, 230VAc

Microwave barrier working at 24GHz in the K band, complete with cavities and 200mm parabolic antenna and 4 different channels, allows considerable penetration of the field giving long range but with a very small diameter lobe, allowing installation in areas with limited free space. Calibration and testing is simplified thanks to the onboard LED array and the digital voltmeter located at the receiver

Specifications
- Max range indoor: 650 m
- Max range outdoor: 250 m
- Operating frequences: 24 GHz band K
- Alignement technology: Standard
- Circuit consuption: TX 200 mA RX 200 mA
- Heater consumption: 100 W per coloumn
- Operating temp: -25°÷ +70°C
- Alarm output: Free contact relay NC/NO
- Tamper swithches: Opening coloumn cap and front polycarbonate
- Protection degree: IP54
- Dimensions LxPxH: 250 mm x 200 mm x 2000 mm
