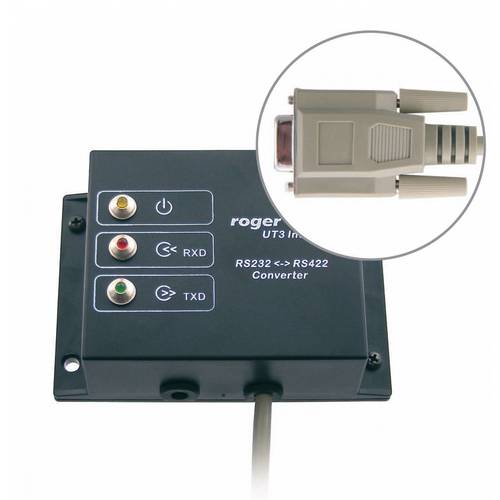

COMMUNICATION INTERFACE
Technical Specification
Power supply: 10...15VDC
Input current: Avg. 80 mA (max. up to 150 mA)
Range of ambient temperature: 0...+55º C.
Maximum transmission range on RS232 side: 15 m (50 ft)
Maximum transmission range on RS422 side: 1200 m (4000 ft)
Relative humidity: 10 to 95% (no condensation)
Ingress Protection: IP30 (indoor use only)
Dimensions: 100 x 68 x 35 (mm)
Weight: 80 g
