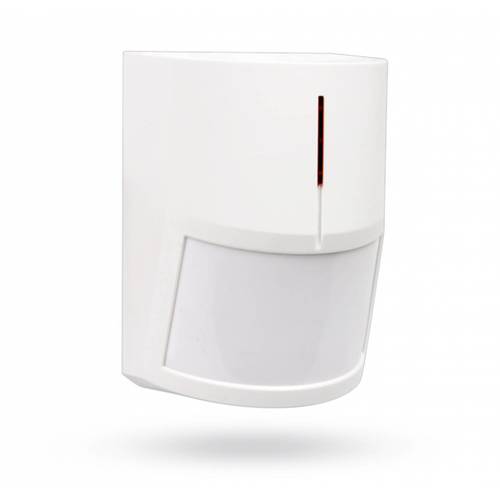

This new compact PIR detector is available giving great performance and less visual impact. It works with Jablotron’s OASiS alarm system. It is designed to detect human body movement over 112 m ² of floor space inside buildings. The detection pattern can be modified by optional lenses to be pet-immune. The detector communicates via OASIS radio protocol runs on battery power.

Specifications
- Voltage: 3.0 V lithium battery, type CR123A
- Typical battery lifetime: approx. 3 years (5 min. sleep mode)
- Communication band: 868 MHz, Oasis protocol
- Communication range: approx. 300m (open area)
- Recommended installation height: 2.0 to 2.5 m above floor level
- Detection angle/detection range: 120° / 12 m (with basic lens)
- Operational environment according to: EN 50131-1 II.indoor general
- Operational temperature range: -10 to +40 °C
- Dimensions: 85 x 60 x 55 mm
- EN 50131-1,CLC/TS 50131-2-2, EN 50131-5-3 classification grade 2
- Complies with ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1
- Can be operated according to ERC REC 70-03
